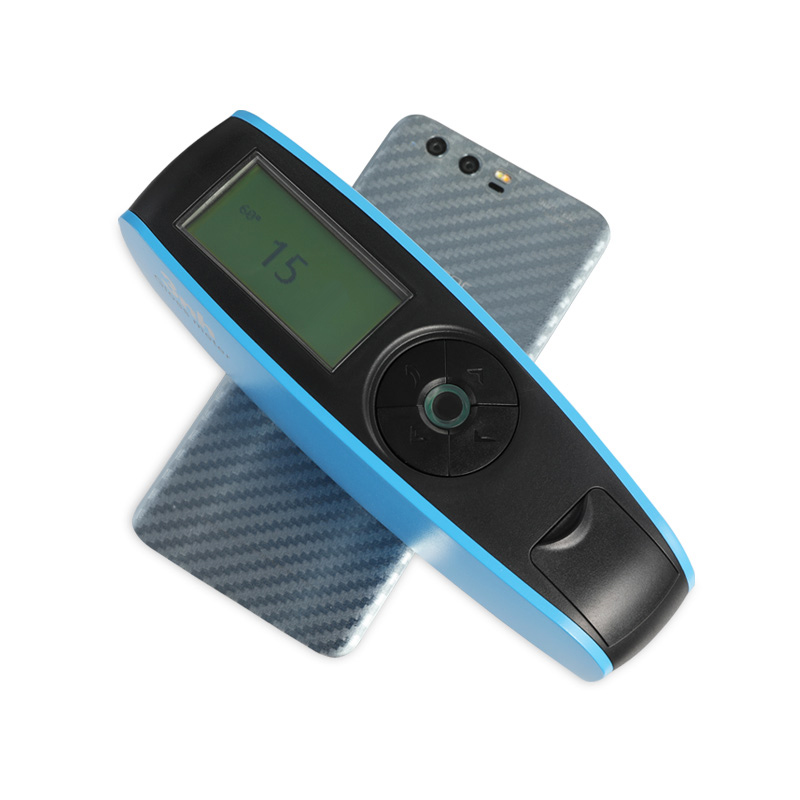

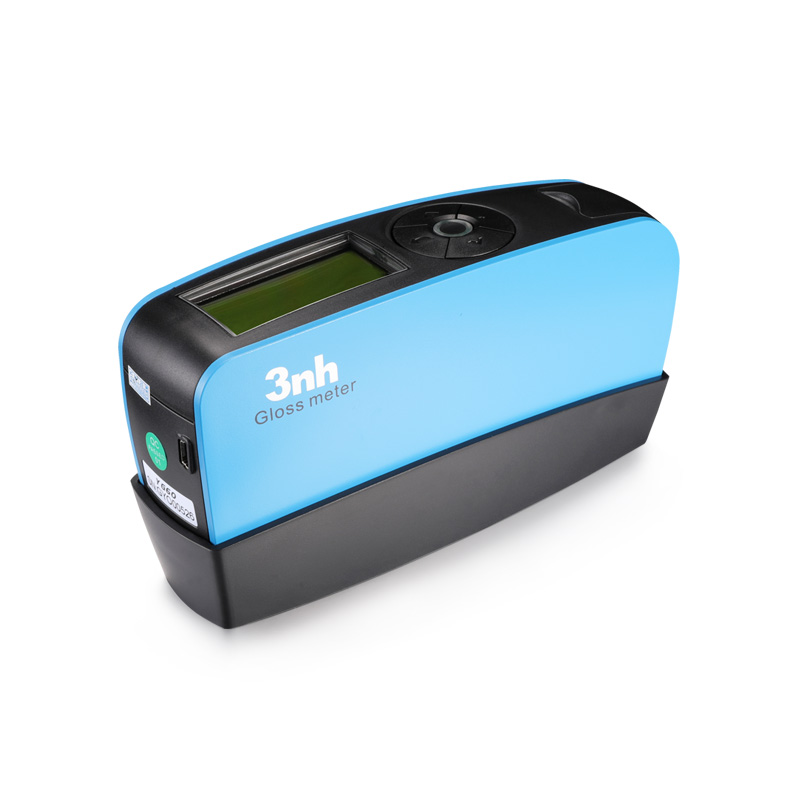

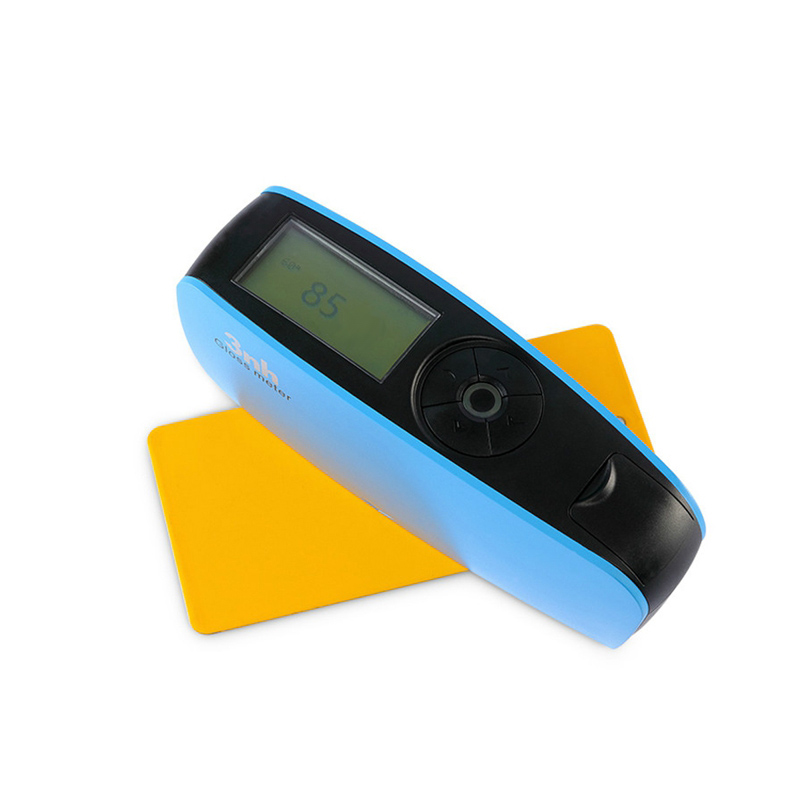

YG60S 60°Economic Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the second grade requirements of JJG696.
Product Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the second grade requirements of JJG696;
4. Auto Power-off within optional 30-120 seconds;
5. Comply to ISO2813,ASTM523, GB/T9754;
Application:
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
|
Model |
YG60S 60°Economic Gloss Meter |
|
Measuring Angle |
60° |
|
Measuring Area |
60°: 0-200GU |
|
Division Value |
1GU |
|
Measuring Modes |
Basic mode |
|
Measuring Time |
0.5S |
|
Repeatability |
0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU |
|
Accurate |
Conform with JJG696 second grade requirements of gloss meter |
|
Auto Power-off Time |
30s |
|
Long-time Calibration |
/ |
|
Language |
Chinese & English |
|
Storage |
/ |
|
Display |
2.3 inch white and black screen |
|
Size |
160*52*84mm |
|
Weight |
About 300g |
|
Power Supply |

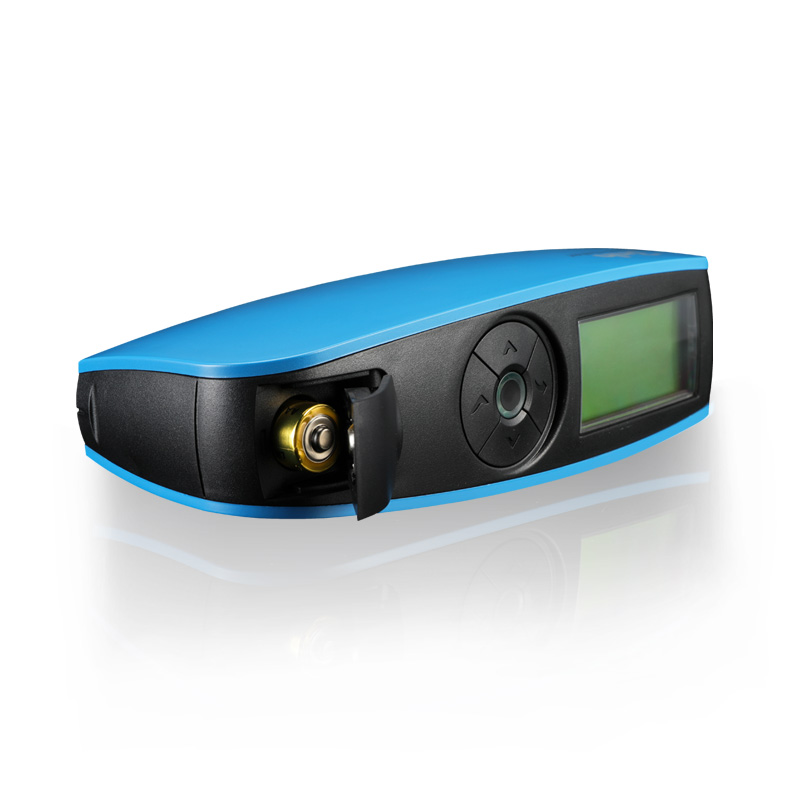

1pc dry-cell battery(can measure 10000 times) or use USB Charge |
|
Interface |
USB |
|
PC Software |
/ |
|
Operation Temperature Range |
0-40℃（32-104° F） |
|
Storage Temperature Range |
-20-50℃（-4-122° F） |
|
Humidity Range |
< 85% RH, without condensation |
|
Standard Accessories |
User manual, calibration plate |
|
Optional Accessories |
Miniature printer |
|
Notification: the technical parameter is only for reference |
